Halo Lifts XL 4 Post Car Lift – 9,000 LBS Capacity

Product Overview

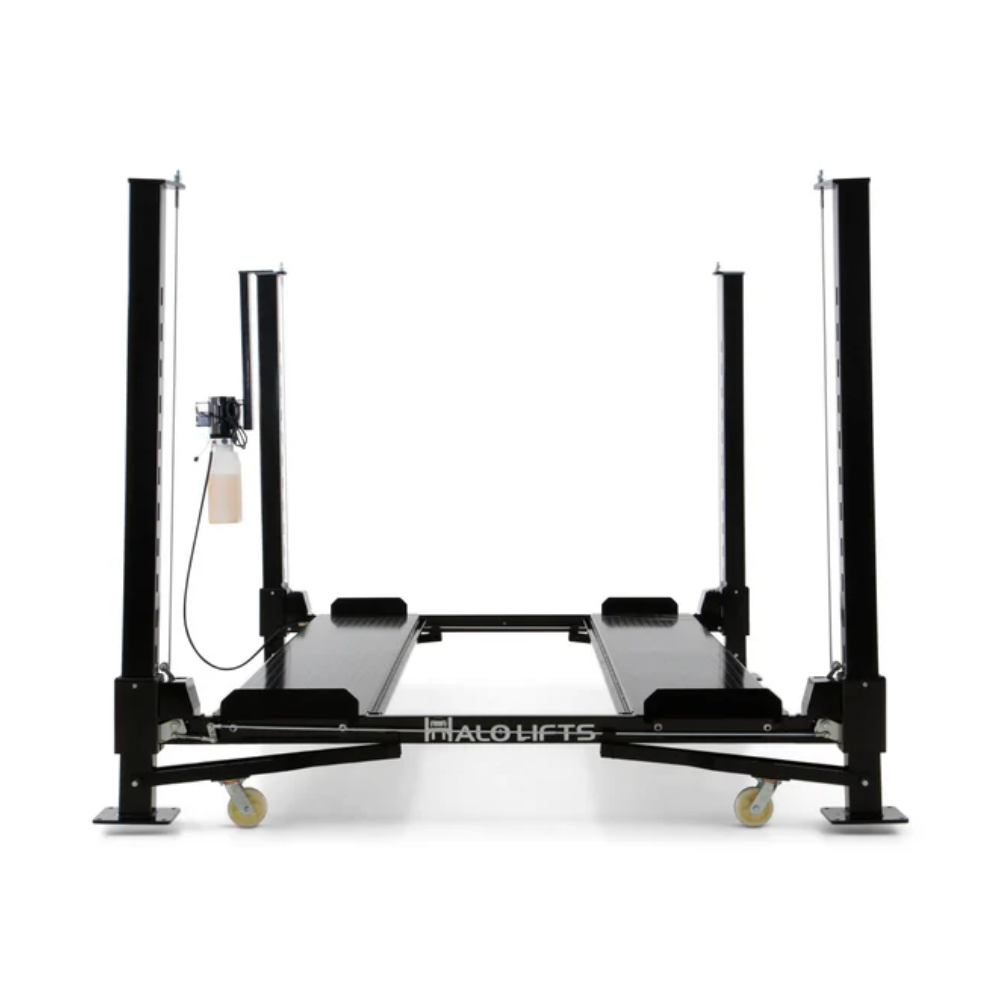

The Halo XL 4-Post Car Lift is an enlarged version of their standard 4-post lift, tailored to fit longer or taller vehicles. It provides more clearance under the runways, extra length, and broader width, making it particularly useful for full-size trucks, large SUVs, or dual-vehicle storage. Its design emphasizes strength, safety, and usability both for car hobbyists and serious mechanics.

Key Features

• Extra Spacious Design
  • Drive-through clearance: ~ 99.6 in — generous width to drive wide vehicles through.
  • Drive-under (vehicle) clearance height: ~ 78 in — allows under-loading work without risk of top-heavy parts hitting ceiling.
  • Runway length: ~ 180.25 in — long enough for most full-size trucks or longer wheelbase vehicles.
• Strong Construction & Materials
  • Welded structural steel C-channel posts with external locking slots for stability.
  • Thick baseplates: 12 in × 12 in, with ~ 5⁄8 inch thickness.
  • Heavy steel runways with lips to hold drip trays and accessories.
  • Low-profile runways: only ~ 5 in high, suitable even for vehicles with low ground clearance.
• Safety & Locking
  • ¾ in thick steel safety locks that are spring-loaded, with 13 locking positions spaced approx. every 4 in.
  • Built-in hydraulic flow restriction to prevent accidental free-fall.
  • Reinforced rod ends, hardened steel lock linkages, and stainless lifting cables rated for loads significantly above working weight.
  • Cables secured with keepers; oversized base plates and cross-tube sleeves to reduce sway when free-standing.
• Included Accessories & Extras

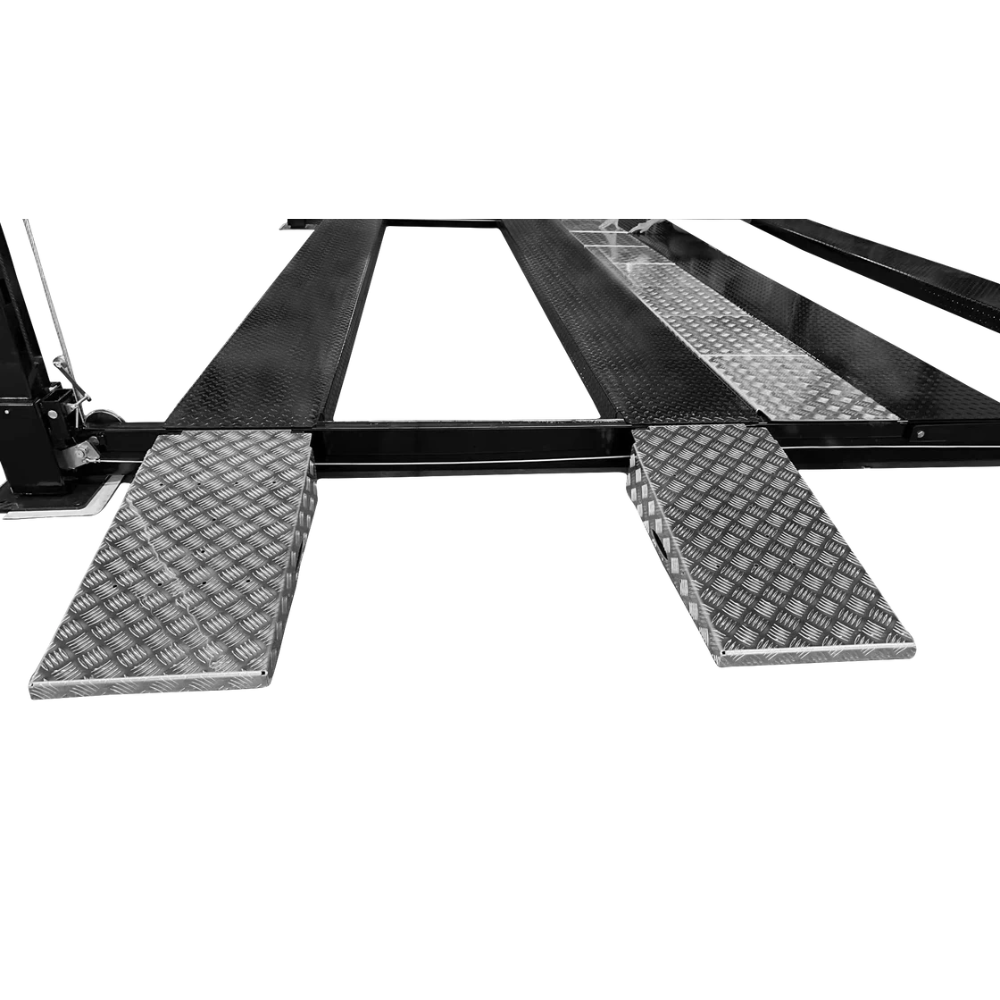

  • Steel approach ramps (36 in) for easy vehicle entry onto runways.
  • Quick-mount casters so the lift can be moved if needed.
  • Drip trays and reinforced lips on runways for fluid containment.
  • Powder-coated finish for weather resistance and durability.
  • Operates from standard 110V outlet (needs to be verified locally for electrical compatibility).
  • Warranty: 2 years on major components.

Specifications

What to Know Before Buying

• Space & Height Requirements
  Make sure your garage/shop has enough ceiling height to accommodate a vehicle under the runways plus safe clearance. Also ensure sufficient width and depth around the lift.
• Floor & Foundation
  Requires a solid, level concrete slab that can be anchored. The weight of the lift plus vehicle, when combined, needs strong foundation support.
• Unloading & Setup
  This is a large, heavy unit. Use a forklift or hoist to unload and move. Assembly will require multiple helpers, good tools, and careful alignment.
• Compliance & Use
  Verify local electrical requirements and safety regulations. Always use safety locks before working under a raised vehicle. Ensure accessories (ramps, trays, caster kit) are used correctly.
• Maintenance
  Inspect locks, cables, ramps, and hydraulic/hardware components regularly. Keeping everything tight, clean, and appropriately lubricated extends lifespan and ensures safer operation.
